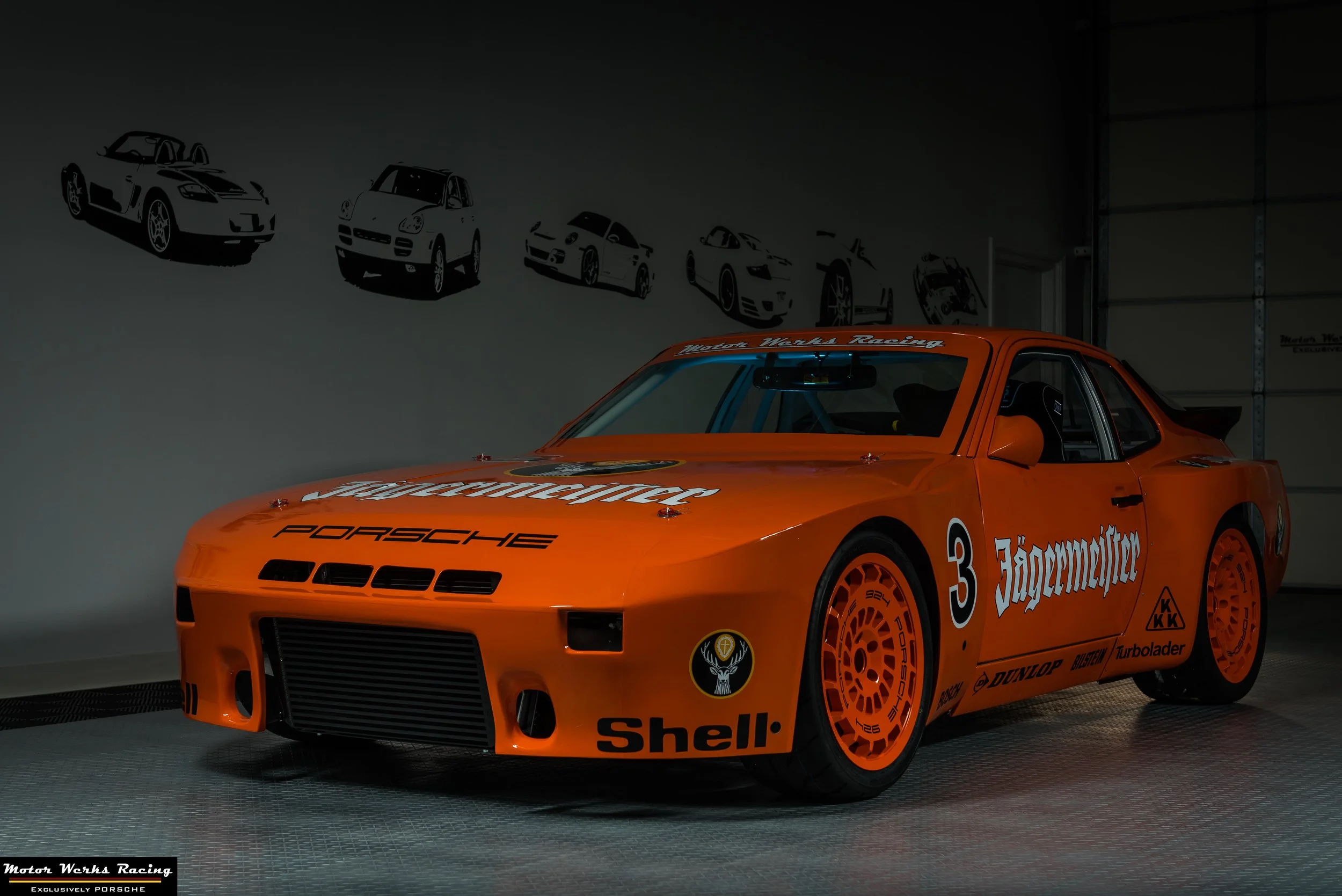

Porsche 924 GTP Jagermeister Tribute

by motor werks racing

This 924 GTP was hand built by our team and is now a part of our "Heritage Tribute Collection"...  She is 450 hp and 2010 lbs.  Powered by our 1.8T engine conversion and pulling all the way to 8,000 rpm's.

See Build Specs below…

BODY

1986 Porsche 944 Chassis

Media Stripped & seam welded with 6 point roll cage

924 GTP One piece nose

Removable GTP composite quarter flares

GTP rear spoiler with extensions

Polycarbonate quarter windows & rear hatch

2,010 lbs

DRIVE TRAIN

Audi 1.8T 20V Turbo engine with IE forged connecting rods

ARP Main & head studs

AEB Big port head with billet adjustable cam gear, dual valve springs & titanium retainers

Borg Warner EFR Turbo Charger

3” inlet / outlet Air to Air intercooler

450 HP & 395 ft. lb Torque and 8,000 rev limiter

Porsche 987 gearbox with rear-mounted alternator

Custom Motor Werks Racing axles

ECU controlled water meth injection

SUSPENSION & BRAKES

Motion Control Suspension double adjustable remote reservoir shocks

Custom MWR Delrin bushings with Caster adjustment

Box welded shock towers with billet camber plates

MWR 2-piece adjustable control arms with serviceable bushings & ball joints

Rotiform CCV wheels

18 x 8.5  255/35 R18 Front Hoosier R7

18 x 9.5  295/30 R18 Rear Hoosier R7

Wilwood 4 piston brake calipers

Cross drilled rotors

Non-assist manual brake master


Photos by: J. Tony Serna
