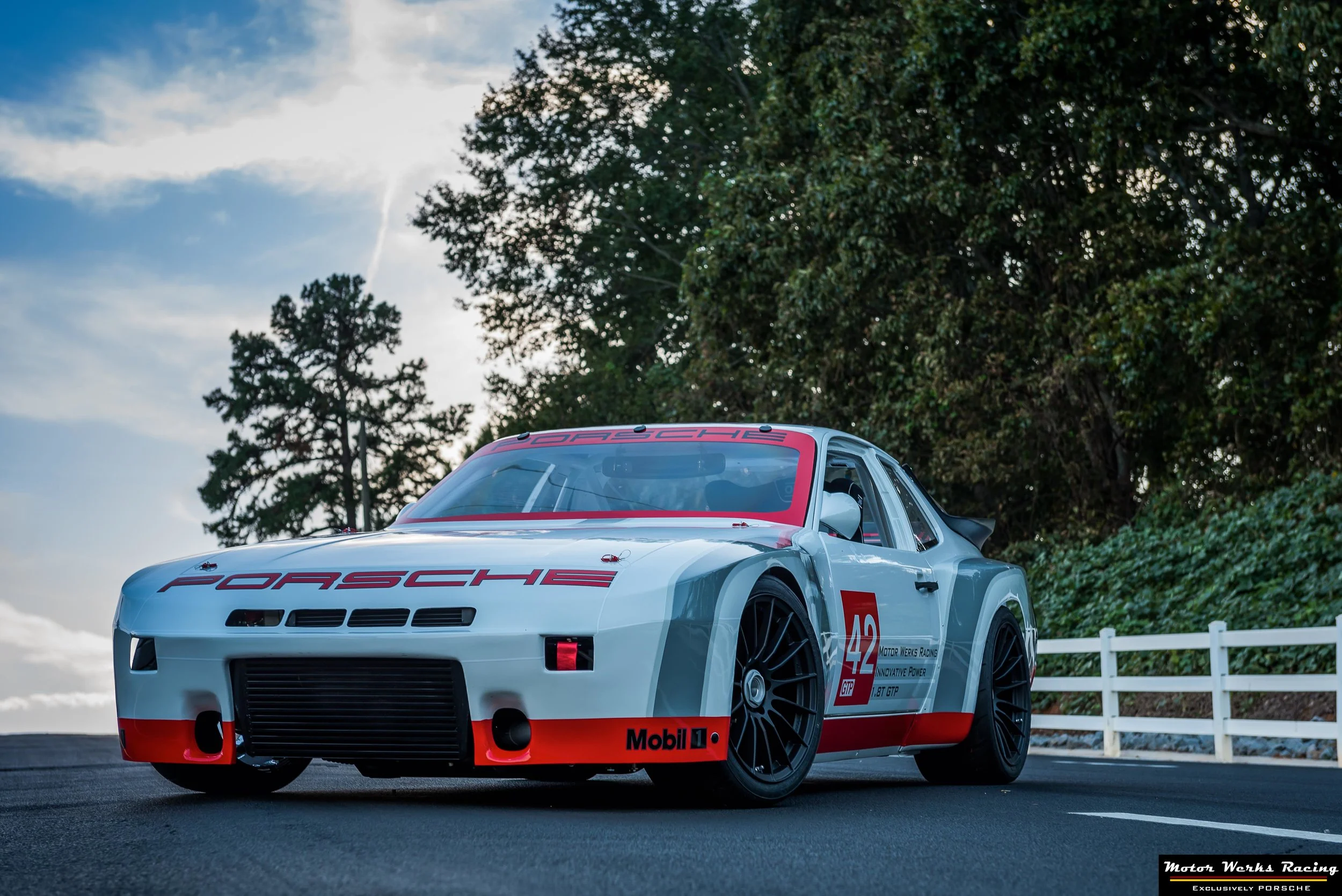

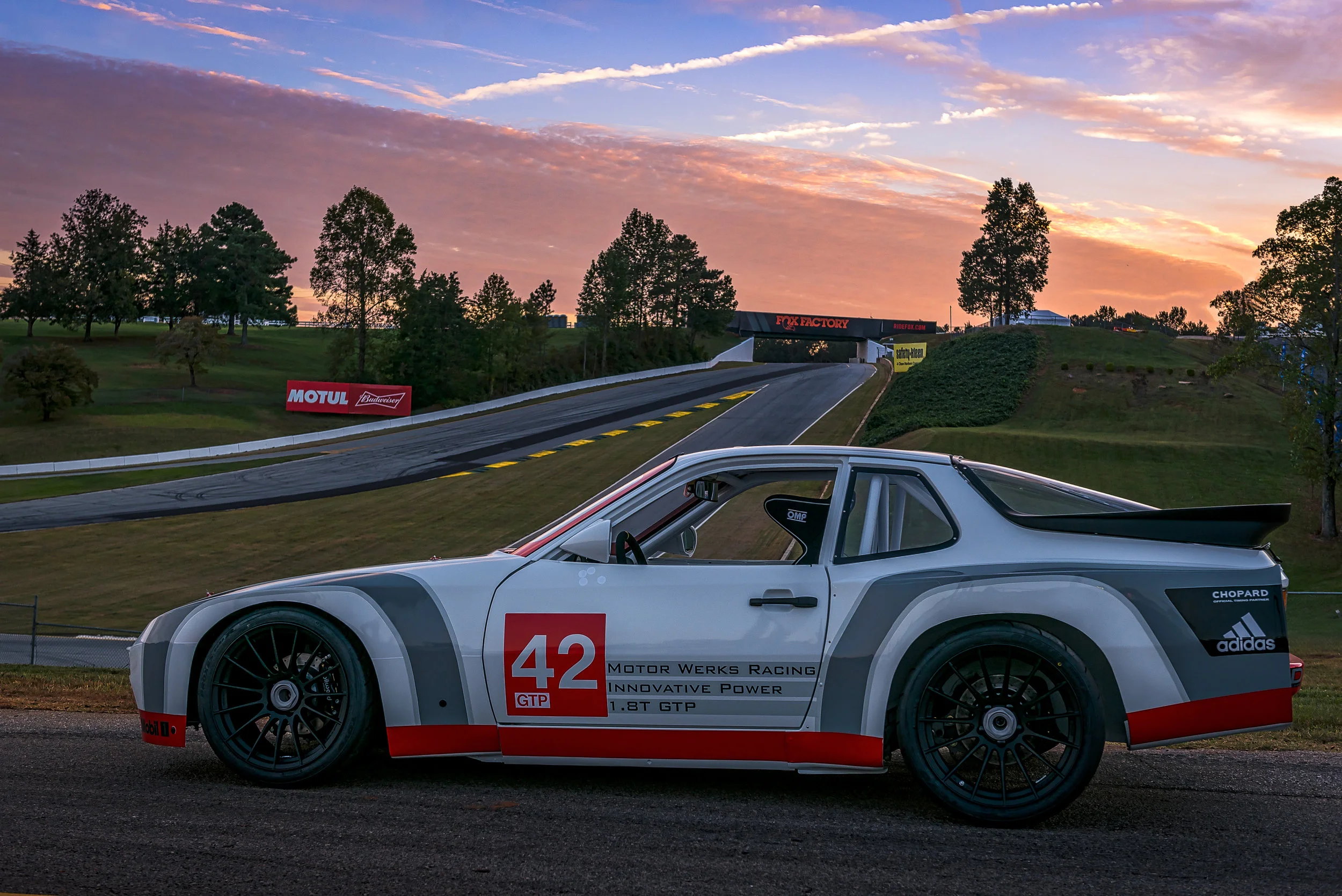

Motor Werks Racing GTP #42.jpg

Porsche 924 GTP Innovative 1.8T Power Tribute

by motor werks racing

This Porsche 924 GTP was hand built by our team for it's new owner as a blend of early and late Porsche models.  It is now a part of our "Heritage Tribute Collection"...  She is powered by our 1.8T engine conversion with 485 HP, 8,500 RPM rev. limit and is 1990 lbs

See Build Specs below…

BODY

1986 Porsche 944 Chassis

Media Stripped & seam welded with 6 point roll cage

924 GTP One piece nose

Removable GTP composite quarter flares

GTP rear spoiler with extensions

Polycarbonate windshields & windows

Push button quick release latches

1990 lbs.

DRIVE TRAIN

Audi 1.8T 20V Turbo engine with IE forged connecting rods

ARP Main & head studs

AEB big valve head with IE Cams with billet adjustable cam gear, dual valve springs & titanium retainers

4 into 1 long tube venturi collector header with Borg Warner 6758 EFR Turbo Charger

3” inlet / outlet Air to Air intercooler

480 HP & 395 ft. lb Torque and 8,500 rev limiter

Porsche 987 gearbox with rear-mounted alternator

Custom Motor Werks Racing axles

ECU controlled water meth injection

SUSPENSION & BRAKES

Koni Adjustable coil over shocks

Custom MWR Delrin bushings

Box welded shock towers with billet camber plates

MWR 2-piece adjustable control arms with serviceable bushings & ball joints

18 x 8.5  255/35 R18 Front

18 x 10.5  295/30 R18 Rear

Wilwood 4 piston brake calipers

Cross drilled rotors

Non-assist manual brake master


Photos by: J. Tony Serna

"It is our passion that drives us, it is our perseverance for perfection that makes us who we are... Let our experience drive your passion"
